SOIL TESTING
LABORATORY AND ON SITE
PLASTIC LIMIT APPARATUS
The plastic limit is the water content at which a soil-water paste changes from a semisolid to a plastic consistency
LIQUID LIMIT DEVICE
Hand or Motorized
Consistency of soil on site
CONE PENETROMETER SOIL
Used to determine geotechnical properties of soils
DYNAMIC CONE PENETROMETER (DCP)
Used to determine underlying soil strength
SHRINKAGE LIMIT APPARATUS
The shrinkage limit (SL) is the water content where further loss of moisture will not result in any more volume reduction
PROCTOR MOULD AND RAMMER (COMPACTION TEST)
Mould 100mm (1000cc) Rammer 2.6 kg
Mould 150mm (2250cc) Rammer 4.89kg
rapid moisture meter
Moisture Content of Soil
soil hydrometer
Used to determine the particle size distribution of fine-grained soils passing 75 µ sieve
sand pouring cylinder
100mm
150mm
200mm
pycnometer
500ml
1000ml
specific gravity bottle
25ml
50ml
100ml
​
_edited.jpg)
CORE CUTTER WITH DOLLY
Bulk density of soil

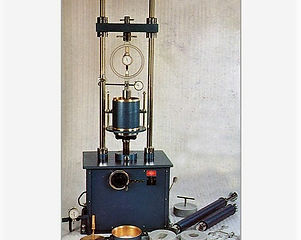

california bearing ratio (cbr) test apparatus
Bearing Capacity of Soil
Used to evaluate the subgrade strength of roads and pavements
CONstant head permeability apparatus
Experiment conducted to determine the permeability of soil. The soils that are suitable for this tests are sand and gravels. Soils with silt content cannot be tested with this method.
universal premeability test apparatus
Clays and Silt are Tested using this
sieve g.i.
300mm dia and 450mm dia
​
POCKET soil PENETROMETER
Instant estimates of unconfined compressive strength of cohesive soils.
sieve brass
200mm dia
sieve shaker
Sieve Shaker
SPATULA
Spatula
